Introduction

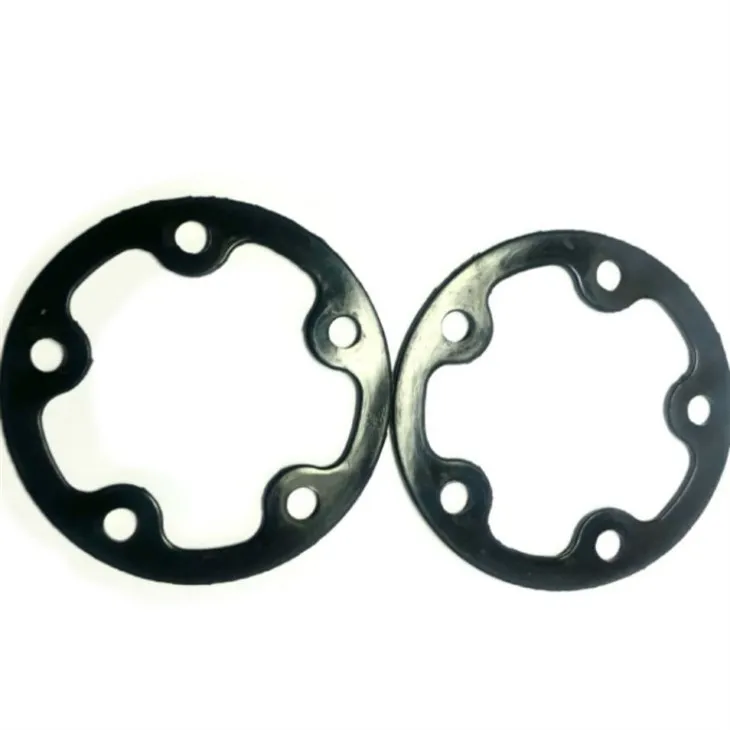

EPDM Rubber Sheet is a flexible sealing material for gas and liquid barriers in industrial systems.
Features
1. Compression Recovery
Recovers close to original thickness after compression, with minimal collapse or delayed rebound during recovery.
2. Weather Resistance
Performs reliably in extreme cold and heat, with strong resistance to UV and ozone exposure over long periods.
3. Durability
Remains resistant to cracking, surface wear, and deformation after long-term use.
|
Material |
Description |
Temperature range |
|
NBR |
Has good solvent,oil,water and hydraulic fluid resistance. Good compression set,abrasion resistance and tensile strength. |
-40℃~120℃ |
|
VITON |
High temperature resistance is better than silicone rubber,has excellent weather resistance, ozone resistance and chemical resistance.but cold resistance is bad. |
-20℃~260℃ |
|
Silicone |
Has excellent heat resistance,cold resistance,ozone resistance,aging resistance.Has good insulation performance.but the tensile strength is poor and it is not resistant to oil. |
-55℃~250℃ |
|
EPDM |
Has good weather resistance. ozone resistance,water resistance, insulating properties and chemical resistance. |
-55℃~150℃ |
|
HNBR |
With excellent corrosion resistance. tear resistance and compression deformation characteristics, ozone resistance,resistance to sunlight, oil resistance, good weather resistance. |
-40℃~150℃ |
|
CR |
Sunlight resistance. weather resistance is particularly good. Easy crystallization and hardening at low temperature. |
-40℃~150℃ |
|
IIR |
Air tightness especially good, heat resistance. sunlight resistance, ozone resistance.good insulation properties. |
-50℃~110℃ |
|
NR |
Has good abrasion resistance, elasticity, tensile strength and elongation. |
-20℃~100℃ |
|
PU |
The mechanical properties of the polyurethane rubber are very good, the wear resistance and the high pressure resistance are much better than other rubber. |
-45℃~90℃ |
|
FFKM |
Excellent chemical corrosion resistance, The maximum heat resistance can be 320℃ the price is generally the rubber material of nearly a hundred times, very expensive. |
-25℃~320℃ |
|
SBR |
Has good wear resisting, heat resistance, ageing resistance. |
-30℃~100℃ |
Application
Company Strengths
Robust Management
Standardized production and quality systems ensure consistent output across all product lines.
Technical Expertise
Guidance on material, fabrication, and validation.
Global Distribution
Industrial sealing solutions worldwide.
Customization
Thickness 0.5–50mm, hardness 40–90 Shore A.
Certifications
FAQ
Q1: Do you support OEM ?
Yes, we can produce by technical drawings or samples.
Q2: How to obtain a quotation?
The company's sales team will provide appropriate plans based on your drawings and other requirements for reference. After determining the plan, the quotation will be based on the product quantity and post-processing process in the drawings.
Q3: How do you deliver the goods?
Various methods such as EXW, FOB, DDP, etc. are available for you to choose from to meet your requirements.
Q4: What is your delivery time?
Generally it is 5-15 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock, it is according toquantity.
Q5: Can we know the production process without visiting the factory?
We can provide a production schedule and send pictures and videos showing the production progress.
